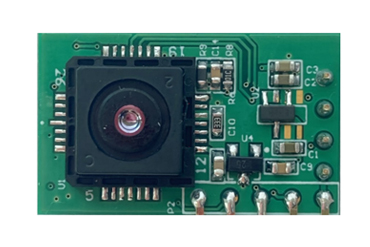

16x16 dot matrix temperature measurement equipment (GTM016)

16x16 dot matrix temperature measurement equipment (GTM016)


16×16 pixels, 52 micron pitch

Low noise VOx technology

Optimized for the 8-14 micron spectral region

(other regions are also possible)

Fully integrated, low noise on-chip CMOS

readout electronics with I2C interface

On-chip temperature drift and offset

compensation

On-chip noise filtering

Mounted in an evacuated package, complete

with 8-14 micron AR-coated silicon window

On-board thermal image processor converts raw

data into temperature image.

Module size: 15 mm x 25 mm x 7.8 mm
